Visão Geral
The 43591 kit is used to mount a DustVue™10 or 20 sensor to a single-axis tracker torque tube. With the kit, you can mount your DustVue in the plane of array with your existing solar panels. The 43591 kit allows the DustVue to be offset from the torque tube for downward-facing soiling measurement clearance. There is some course adjustability to level the DustVue or to adjust the unit as close as possible to the plane of the solar modules.
imagens

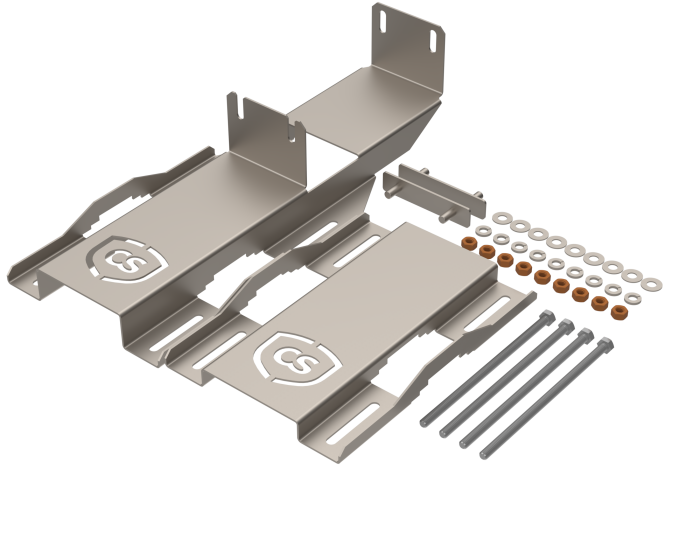

The 43591 mounting kit
Compatibilidade
Please note: The following shows notable compatibility information. It is not a comprehensive list of all compatible products.
Sensors
| Product | Compatible | Note |
|---|---|---|
| DustVue 10 | ||
| DustVue 20 |
Especificações
| Material |
|
| Hardware | 5/16-18 x 7 in. 304SS fully threaded screw with silicone bronze nuts |
| Accommodated Square Torque Tube Size Range | 11.4 cm (4.5 in.) to 15.9 cm (6.25 in.) with included hardware; up to 23 cm (9 in.) with longer, user-supplied bolts |
| Accommodated Round Torque Tube Size Range (outer diameter) | 11.4 cm (4.5 in.) to 18.4 cm (7.25 in.) with included hardware; up to 23 cm (9 in.) with longer, user-supplied bolts |
| Main Bracket Dimensions | 19.3 x 46.2 x 10.2 cm (7.6 x 18.2 x 4.0 in.) |
| Assembly Dimensions | 19.3 x 46.2 x 14 cm (7.6 x 18.2 x 5.5 in.) |
| Weight | 3.17 kg (7 lb) |
